Biometric Authentication

We provide testing capabilities for mobile app biometric authentication (fingerprint and facial recognition). Please note that not all iOS and Android mobile devices offer this feature.

What You'll Need#

Live Testing#

SupportedNot Supported
Android real devicesโœ“
iOS real devicesโœ“
Android emulatorsโœ•
iOS simulatorsโœ•

To enable biometric authentication for your app:

  1. Click LIVE > Mobile App to navigate to Sauce Labs real devices.
  2. If you haven't already, upload your app file.
  3. Hover over your app row and click Settings.
  4. Set Biometrics Interception to Enabled.
  5. Return to the app menu by clicking Back to App Selection.
  6. Start up your live test session:
    1. Hover over your app and click Choose Device.
    2. Choose an available device from the menu.
    3. Click Launch.

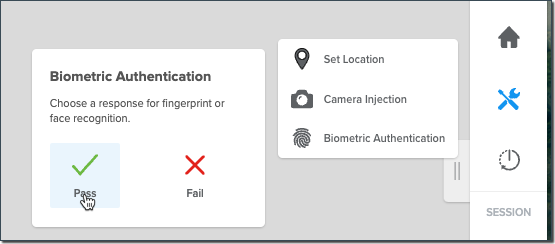

To initiate a fingerprint or facial recognition action in your live test session:

  1. In the toolbar, click the Authentication fingerprint icon.
  2. Select a response:
    • Select PASS to imitate successful authentication.
    • Select FAIL to imitate unsuccessful authentication.

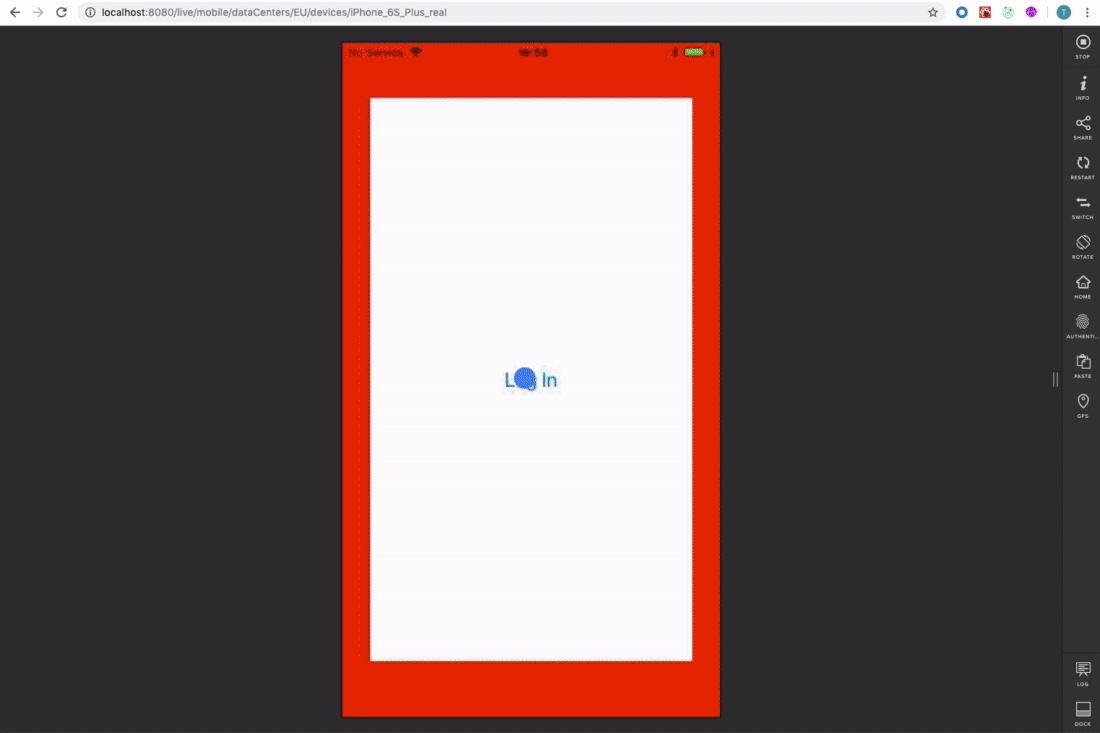

Biometric authorization live testing
Biometric authorization live testing

See Live Mobile App Testing Toolbar for more information.

Automated Testing#

SupportedNot Supported
Android real devicesโœ“
iOS real devicesโœ“
Android emulatorsโœ“
iOS simulatorsโœ“

iOS Simulators#

To enable Touch ID and Face ID on Sauce Labs iOS simulators or on your local machine, set the desired capability allowTouchIdEnroll to true. When the simulator starts, Touch ID enrollment will be enabled by default.

You can also toggle Touch ID enrollment during a test session by calling, for example, the WebdriverIO client method driver.toggleEnrollTouchId(true). More examples in different programming languages can be found here.

  1. Add the allowTouchIdEnroll capability in your test script and set it to true.
    allowTouchIdEnroll: true,
  2. Use the driver.toggleEnrollTouchId method with a value of true or false in your test script to toggle the Touch ID enrollment during the test.
    webdriverio/appium-app/examples/biometric-login/test/specs/touch.face.id.spec.js
    loading...
  3. To run your test locally, call npm run test.local.ios.simulator. To run your test on an Sauce Labs iOS simulator, call one of the following data centers, based on your location:
    • US Data Center: npm run test.sauce.ios.simulator.us
    • EU Data Center: npm run test.sauce.ios.simulator.eu

For additional sample tests and configurations, see our demo repo.

Android Emulators#

Android emulators do not have a capability to enable Touch ID enrollment. Rather, you must engage the device settings to enable Fingerprint enrollment and then use a command to emulate the fingerprint with a PIN.

To enable biometric authentication on Android emulators:

  1. Open an emulator.

  2. Activate Screenlock by clicking the three dots icon, then choose Settings > Security.

  3. Go to Fingerprint to add a new fingerprint.

  4. When prompted to place your finger on the scanner, emulate the fingerprint using this ADB command:

    adb -e emu finger touch <finger_id>

    For example, adb -e emu finger touch 1234 sets 1234 as the virtual fingerprint. When you test the fingerprint in your automation script, use this value in your adb command for a successful authentication, or an incorrect value to test a failed authentication.

    note

    Make sure you have included the helper command to allow ADB commands in your script:

    tests/e2e/screenObjects/AndroidSettings.js
    loading...
  5. After adding the fingerprint, the emulator displays a fingerprint detected message.

  6. Return to your Android app, navigate to an action that requires fingerprint authentication, and execute the same command on the app screen.

tests/e2e/screenObjects/AndroidSettings.js
loading...

Real Devices#

To enable fingerprint and facial recognition on iOS and Android real devices:

  1. Add the allowTouchIdEnroll capability to your test configuration and set it to true.
  2. When your test triggers a biometric prompt event, you can trigger a successful or failed authentication using the following commands:
  • driver.execute('sauce:biometrics-authenticate=true'); passes a successful authentication to the prompt.
  • driver.execute('sauce:biometrics-authenticate=false'); passes a failed authentication to the prompt.
  1. Sauce Labs intercepts this command to trigger an authentication reponse prior to engaging Appium, which is why the result is not captured in the Appium logs.
Capabilities Example
loading...

Additional Resources#
